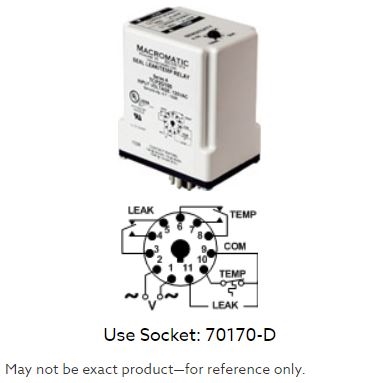

TCP2G250 - MACROMATICS - SEAL LEAKAGE & OVER TEMPERATURE RELAY

TCP2G250 - MACROMATICS - SEAL LEAKAGE & OVER TEMPERATURE RELAY
SEAL LEAKAGE & OVER TEMPERATURE RELAY

List Price: $155.07
Current Price: $144.22
Sale Price: $144.22
Savings: $10.85

Quantity in Stock:(Out of Stock)

Availability: Usually Ships in 1 to 2 Weeks
Product Code: TCP2G250

UOM sold by: Each(es)


Qty:
Description Technical Specs Extended Information

MFR: MACROMATICS
TCP2G250 - SEAL LEAKAGE & OVER TEMPERATURE RELAY


$25.00 Order Minimum
$5.00 Line Item Minimum

Questions / Custom Orders
Don't see your requirements? Call us at 818.681.1496, we will be happy to assist you.

Features
    • Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.
    • Load (Burden): 3 VA
    • Indicator LEDs:
      Seal Leak: Green ON with input voltage applied and no seal leak; Red ON when seal leak detected and relay energized
      Temperature: Green ON with input voltage applied, normal temperature condition and relay energized; Red ON when over temperature detected and relay de-energized
    • Probe Voltage: 5V DC Pulsed
    • Response Time: Pick-up & Drop-out: 1 Second
    • Output Contacts: 7A @ 240V AC/7A @ 28V DC, 1/4HP @ 120V AC (N.O.)
    • Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
    • Temperature: -28o to 65o C (-18o to 149o F)

    • Approvals:

      c-ur-us.jpg UL-socket.jpg
