CD07AA-BR - Sealcon/Hummel - Strain Relief, Dome Top, Nickel Plated Brass, PG7, Cable Range .11 - .26" (3

Home > Electronic Components >

CD07AA-BR - Sealcon/Hummel - HSK-M Pg 7 for cable 3-6,5 mm made of nickel plated brass, (1609070001), Pkg/50

CD07AA-BR - Sealcon/Hummel - Strain Relief, Dome Top, Nickel Plated Brass, PG7, Cable Range .11 - .26" (3 - 6.5 mm), 1.609.0700.01

Alternative Views:

Current Price: $5.75

Sale Price: $5.75

(Minimum order): 2

Quantity in Stock:100

Availability: Usually Ships in 1 to 2 Weeks
Product Code: CD07AA-BR

UOM sold by: Each(es)

Qty:

Description

Technical Specs

Extended Information

MFR: Sealcon
Strain Relief, Dome Top, Nickel Plated Brass, PG7, Cable Range .11 - .26" (3 - 6.5 mm), 1.609.0700.01 -

$25.00 Order Minimum
$5.00 Line Item Minimum

Questions / Custom Orders / Quantity Breaks Starting at 500 units

Don't see your requirements? Call us, we will be happy to assist you.

Call Us: 818.681.1496

Features

Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K)
Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
Flame protected - V0 Rated according to UL 94
Halogen- and Phosphorous free materials
Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
Durable - Rugged Construction
Environmentally compliant - RoHS & Deca BDE

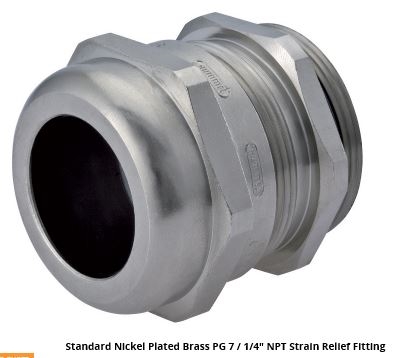

This Nickel Plated Brass Strain Relief with PG 7 / 1/4" NPT Thread will provide your application with a product made of exceptional quality.

Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
